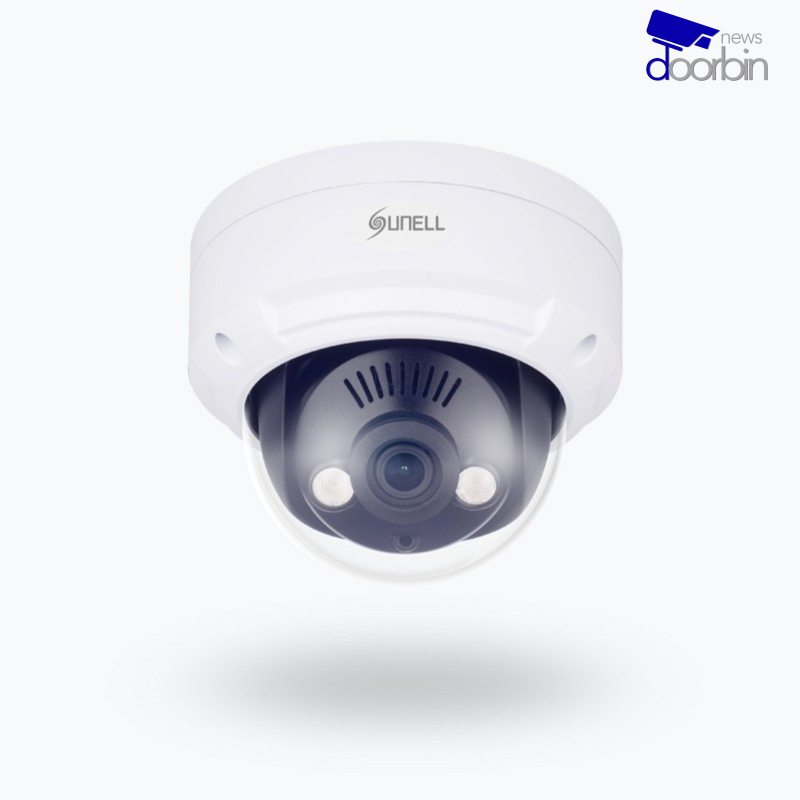

مشخصات فنی دوربین شبکه OD2H
• Maximum Resolution : 1920(H) x 1080(V)/25fps
• True WDR > 120dB
• Fixed lens 2.8mm
• 2 pcs Powered Super Flux LED
• Min illumination: Color 0.01 Lux
• Support ROI , Corridor Mode , HLC
• Operating Temperature : -20° to +50°
توضیحات
دوربین سقفی 2 مگاپیکسل با پردازش +H265
• True WDR
• مادون قرمز ۳۰ متری
• لنز ثابت 2.8mm
• ضد آب (IP66)
• ضد ضربه (IK10)
• عدم پشتیبانی کارت حافظه
• فاقد ورودی و خروجی صوت و آلارم
توضیحات تکمیلی
| Angle of View | H: 105°, V: 55° |
|---|---|
| Bit Rate | Stream1: 200kbps ~ 12Mbps Stream2: 10kbps ~ 3Mbps Stream3: 10kbps ~ 1.5Mbps |
| Bit Rate Control | CBR/VBR |
| Certifications | CE/FCC |
| Day/Night | Auto(ICR)/Day / Night/Timing |
| Effective Pixels | 1920(H)×1080(V) |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Focal Length | 2.8 mm (3.6 mm optional) |
| Focus Control | Fixed |
| Image Sensor | ۱/۲.۷” Progressive Scan CMOS |
| Interoperability | ONVIF, SDK, CGI |
| IR On/Off Control | Auto/Manual |
| IR Range | Up to 30 m (114.8 ft) |
| Iris | Fixed Iris |
| IVS | Perimeter, Single Virtual Fence, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad |
| Max. Resolution | 2MP (1920×1080) |
| Min. illumination | Color: 0.01 Lux @ (F1.2,AGC ON) , B/W: 0 Lux @ (IR LED ON) |
| Motion Detection | Support |
| Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F ) |
| Noise Reduction | 2D/3D DNR |
| Pan/Tilt/RotationRange | Pan:0˚ ~ 350˚, Tilt:0˚ ~ 75˚, Rotation: ±90˚ |
| Power Supply | DC12V/POE (IEEE 802.3af) |
| Privacy Masking | Support |
| Protocols | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP |
| Region of Interest | Off/On (8 Zone, Rectangle) |
| S/N Ratio | 55 dB |
| Stream/Frame Rate | Stream1: 1920×1080, 1280×720 @ 25/30fps Stream2: D1, VGA, 640×360, CIF, QVGA @ 25/30fps Stream3: VGA, CIF, QVGA @ 25/30fps |
| Streaming Capability | Unicast |
| White Balance | Auto/Tungsten/Fluorescent/Daylight/Shadow/Manual |
| Wide Dynamic Range | 120 dB |
